NEEDL EMARK PT DJARUM .CN INTERNATIONAL GROUP CHINA CO., LTD. is one of China’s leading heavy truck manufacturers. We offer a range of high-quality HOWO trucks designed for industries like construction, logistics, and infrastructure development. Among our best-selling models is the HOWO concrete mixer truck, meticulously engineered to meet the rigorous demands of concrete transportation. These trucks are robust, durable, and equipped with advanced features that optimize construction site performance, safety, and efficiency.
Table of Contents

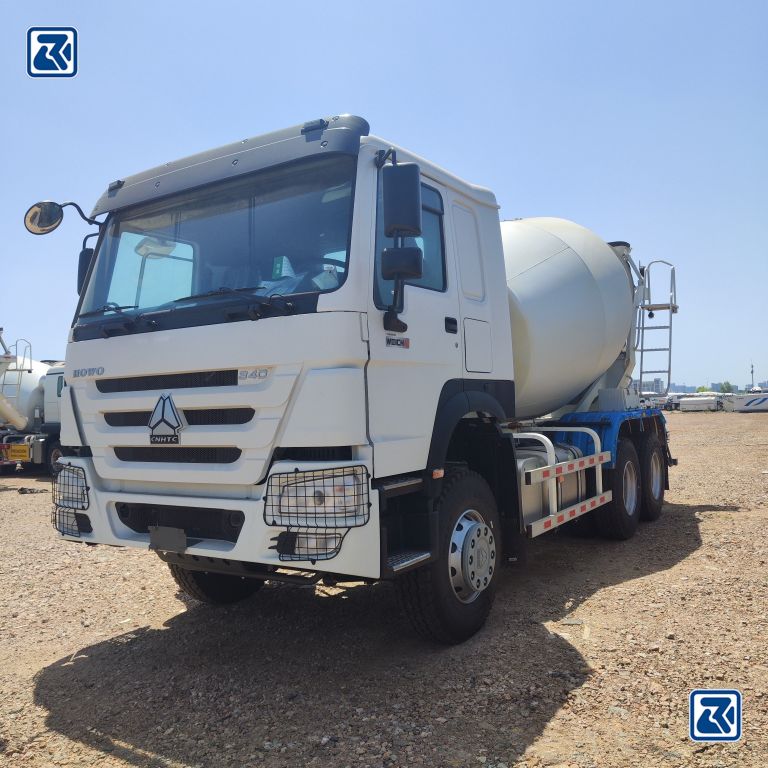

HOWO Concrete Mixer Trucks
HOWO concrete mixer trucks, manufactured by the China National Heavy Duty Truck Group (CNHTC), are known for their durability, efficiency, and reliability in the construction industry. These trucks easily handle heavy loads and harsh conditions, making them ideal for transporting concrete. HOWO offers a variety of models to meet the diverse needs of projects, from small construction sites to large-scale infrastructure developments.
These mixer trucks combine advanced engineering with practical operational needs, featuring robust components that withstand the harsh conditions of construction sites. Key features include powerful engines, mixing drums, hydraulic systems, and advanced control mechanisms.
Key Components of HOWO Concrete Mixer Trucks

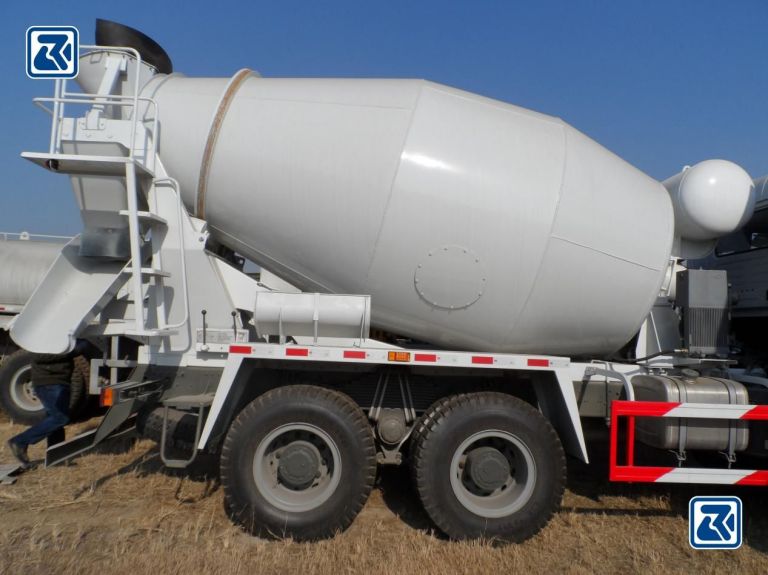

Mixing Drum
The mixing drum is the core component of a concrete mixer truck. It’s typically cylindrical and designed to rotate and mix concrete during transit, ensuring a uniform mixture. The drum’s internal design, shape, size, and slope, are customized to optimize the mixing process. Equipped with a powerful motor, the drum maintains a consistent mixing speed.

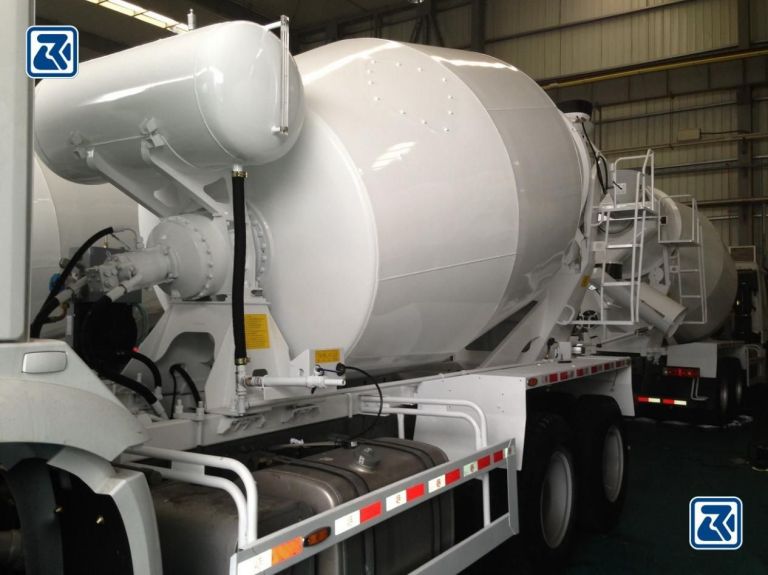

Hydraulic System
The hydraulic system powers the rotation of the mixing drum and other mechanical functions. It includes hydraulic pumps, valves, and cylinders that work together to control the flow of hydraulic fluid. This system provides precise control over the drum’s rotation speed and other operations, delivering the force needed for efficient mixing.

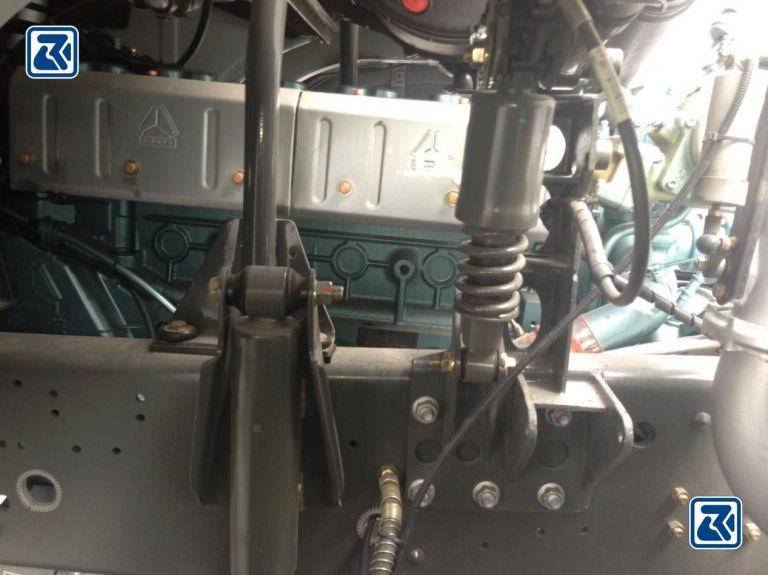

Engine
The engine powers the truck, driving the hydraulic system and providing energy for the truck’s movement and auxiliary systems. Typically diesel-powered, the engine uses advanced fuel injection technology to ensure efficient performance and low emissions. It delivers high power and torque, enabling the truck to handle heavy loads and challenging conditions on construction sites.

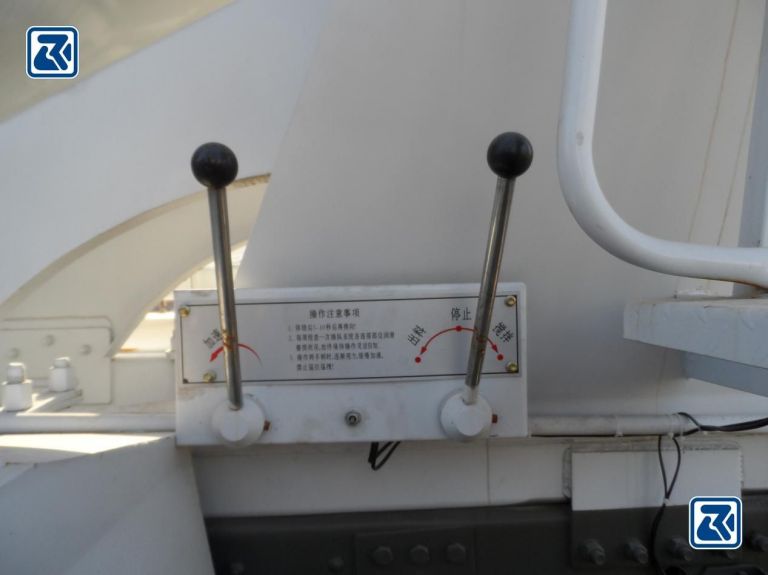

Control System
The control system includes a driver interface that allows the operator to adjust various parameters of the truck and the mixing process. This includes the speed of the engine and drum, the flow of hydraulic fluid, and the operation of auxiliary systems such as air conditioning and lighting. The system features a user-friendly interface and advanced technology for precise control and easy operation.
How the Mixing Drum Works
The mixing drum plays a crucial role in ensuring concrete is mixed evenly and remains consistent during transportation. Its design and functionality are key to achieving optimal results.
Design and Functionality of the Mixing Drum
The mixing drum is designed for effective concrete mixing while avoiding damage. It’s usually cylindrical, with a length-to-diameter ratio optimized for mixing surface area. The drum interior is lined with wear-resistant materials like hard rubber or steel to withstand continuous contact with concrete and minimize wear and tear.
Rotation Function of the Mixing Drum
The mixing drum rotates along a horizontal axis, driven by a powerful motor through gears and shafts. This rotation ensures continuous motion, essential for mixing. Controlled by a hydraulic system, the drum’s rotation speed can vary. This flexibility is crucial as different concrete mixes may require different mixing times and speeds.
Importance of Mixing Drum Rotation Speed and Direction
The drum’s rotation speed and direction significantly impact the mixing process. A steady rotation prevents concrete from segregating or becoming too wet or dry. The drum rotates slower when the truck is moving, as the truck’s motion aids in maintaining the mixture during transit.
Hydraulic System Functionality
The hydraulic system in concrete mixer trucks is vital for efficient operation. It converts stored potential energy into mechanical power to operate various truck components.
Functions of the Hydraulic System
The hydraulic system powers the mixing drum, discharge mechanism, and auxiliary functions like air conditioning and lighting. It uses pressurized hydraulic fluid to transmit power from the engine to different parts of the truck.
Power Transmission to the Mixing Drum
The hydraulic motor converts the kinetic energy of the hydraulic fluid into rotational motion for the mixing drum. The system precisely controls the rotation speed and direction, ensuring optimal concrete mixing.
Other Components Driven by the Hydraulic System
Besides the mixing drum, the hydraulic system powers other key functions, like lifting the drum for loading and unloading concrete. It also controls components like the discharge valve and air conditioning system.
Benefits of Using a Hydraulic System
Hydraulic systems offer several benefits, including compact, powerful Capacity transmission suitable for high-force applications. They’re highly controllable, allowing precise adjustments to power output and drum rotation. This precision maintains concrete quality during transit and discharge. Hydraulic systems are also efficient, using less energy and offering longer service life due to their sealed components.
Loading and Unloading Processes
The loading and unloading processes are critical for delivering concrete in optimal condition.
Loading Process
Loading begins at a batching plant where the concrete mixture is prepared. This involves combining aggregates, sand, water, and cement in precise proportions.
Batch Preparation: Mixing concrete according to the recipe to achieve desired strength and workability.
Loading: Using a conveyor belt, concrete is loaded into the truck’s mixing drum. The drum is lowered to receive the concrete, ensuring the correct volume and quality.
Mixing: After loading, the drum rotates at a controlled speed for thorough mixing before transit.
Unloading Process
Unloading requires careful handling to maintain concrete quality.
Positioning: The truck is positioned near the pour site. The drum is lowered, and the truck is stabilized to prevent movement.
Discharge: The drum rotates to discharge the concrete, controlled by a valve that allows for a controlled flow.
Final Check: After unloading, the drum is raised, and the truck departs. Any spills or leaks are checked to ensure efficient discharge.
Importance of Timing and Precision
Timing and precision are crucial in loading and unloading. Accurate scheduling ensures concrete is mixed and loaded at the optimal time, considering the initial set time and site schedule. Precision in measuring mix proportions and controlling the discharge process maintains concrete quality.
Maintenance for Optimizing Performance
Regular maintenance is essential for reliable operation and extending the mixer truck’s service life. Neglecting routine checks can lead to performance decline and increased costs.
Importance of Regular Maintenance
Regular maintenance identifies and resolves issues before they become serious problems, increasing efficiency and reducing downtime. It ensures compliance with safety regulations and manufacturer guidelines.
Key Maintenance Practices
Cleaning the Mixing Drum: Prevents the buildup of cement slurry by rinsing the drum after use.
Checking the Hydraulic System: Regular inspections for leaks, wear, and contamination ensure optimal performance.
Services Offered by NEEDL EMARK PT DJARUM .CN INTERNATIONAL GROUP CHINA CO., LTD.
NEEDL EMARK PT DJARUM .CN INTERNATIONAL GROUP CHINA CO., LTD. provides comprehensive maintenance services for mixer trucks:
Regular Maintenance: Routine checks and replacements of filters, belts, and fluids.
Diagnostic Services: Identifying and resolving underlying issues for efficient operation.
Customized Maintenance Plans: Tailored to each client’s needs and operational requirements.
Training and Support: Basic maintenance training for operators to minimize downtime and costs.
Prioritizing regular maintenance reduces failures and maintains optimal performance, enhancing safety and concrete production efficiency.
Conclusion
Understanding the operation of HOWO concrete mixer trucks is crucial for maximizing efficiency and extending their lifespan. Regular maintenance and expert guidance from NEEDL EMARK PT DJARUM .CN INTERNATIONAL GROUP CHINA CO., LTD. ensure consistent performance and concrete quality. By investing in comprehensive maintenance and professional support, users can rely on their concrete mixer trucks for successful construction projects.
FAQ
The mixing drum ensures consistent mixing by rotating, which prevents segregation. Equipped with mixing blades and lined with non-stick materials, it maintains the mix’s uniformity throughout transportation.
Mixing Drum: For mixing and transporting concrete.
Hydraulic System: Controls drum rotation and auxiliary functions.
Axle System: Supports vehicle weight and provides traction.
Chassis: The foundation frame for all components.
Engine: Powers the truck and hydraulic system.
Safety Features: Includes brakes, lights, and other equipment for safe operation.
The hydraulic system should be inspected every 300 hours of operation or annually, whichever comes first. Regular maintenance checks for wear, leaks, and contamination are crucial for optimal performance.
